DPS400 Rear Audio Parking Kit

DPS400

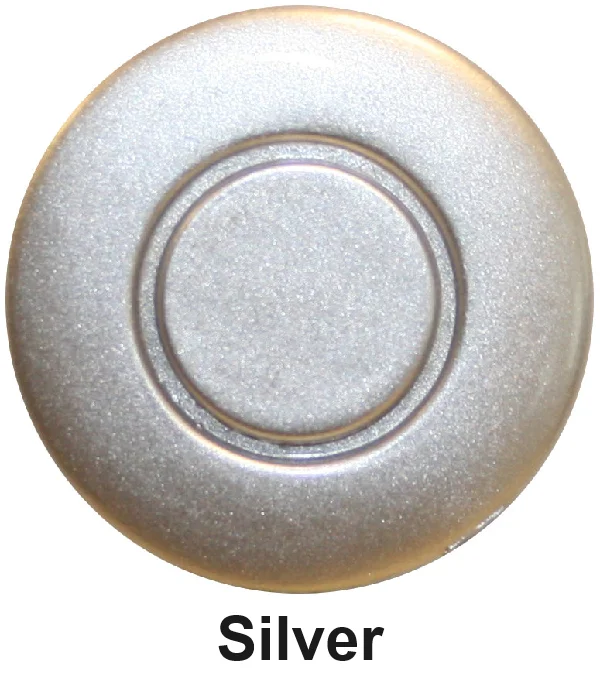

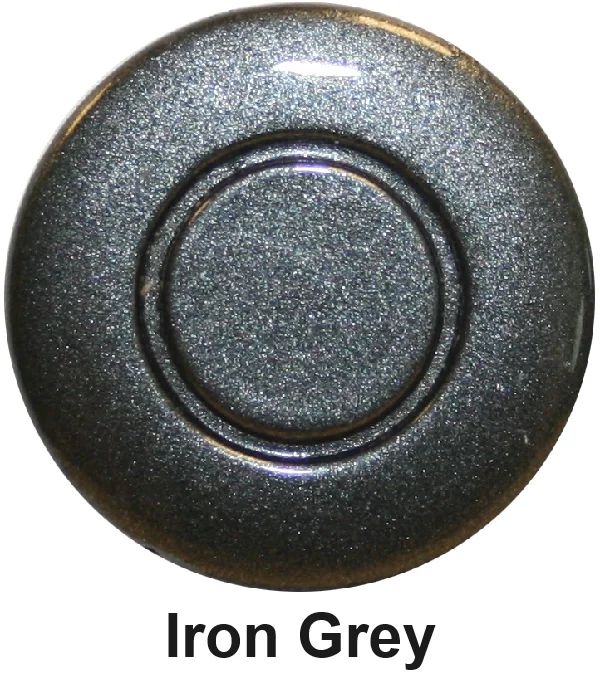

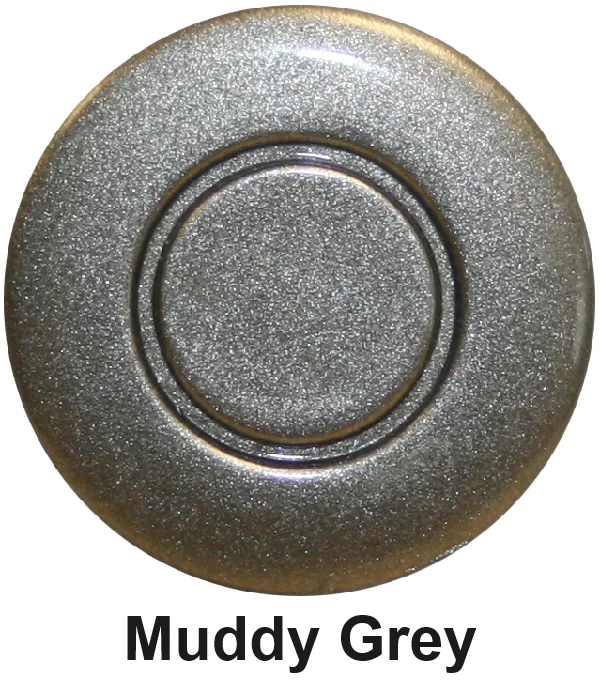

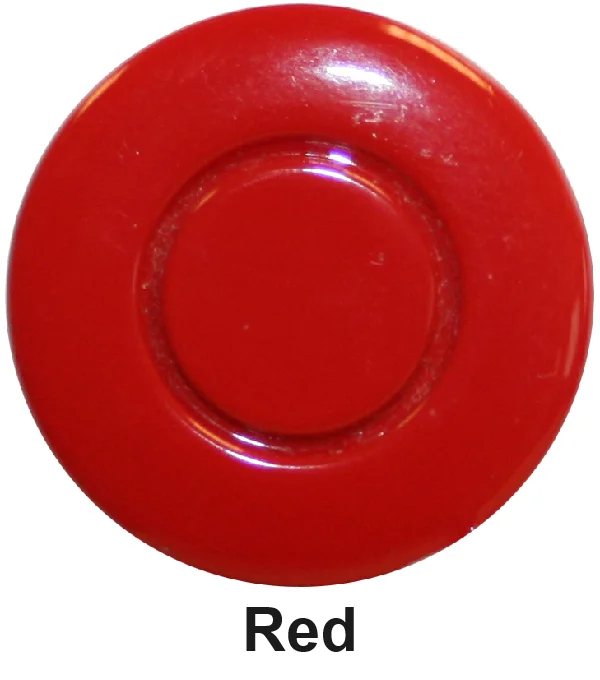

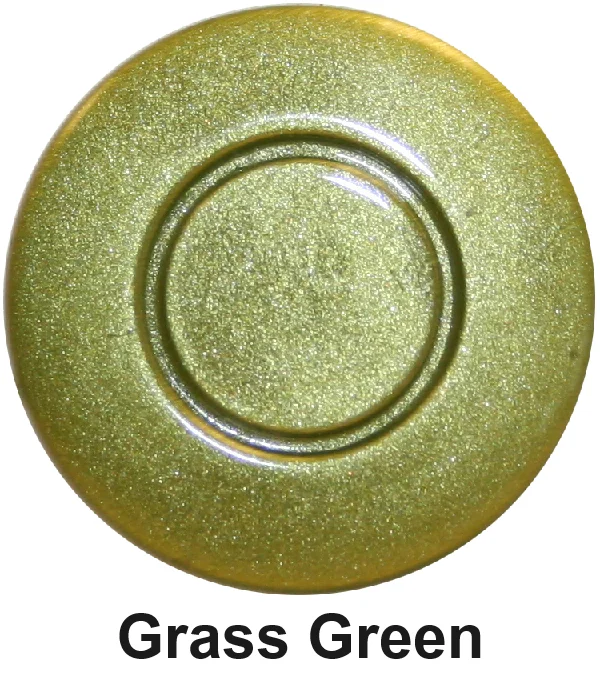

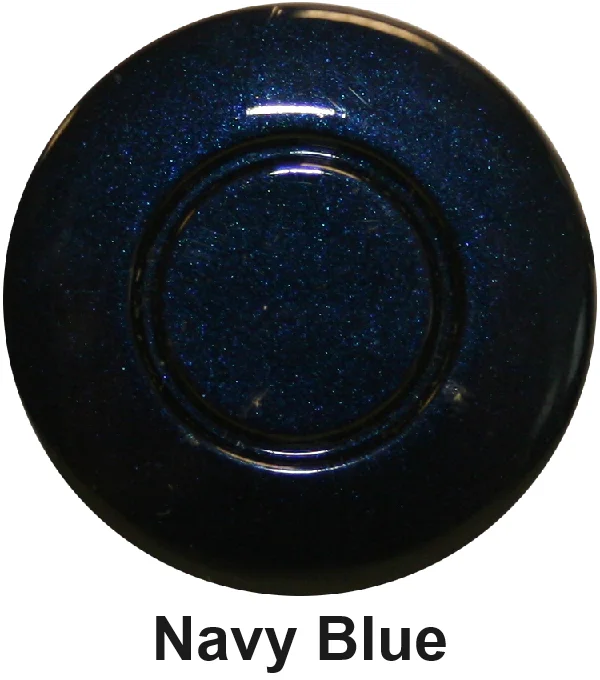

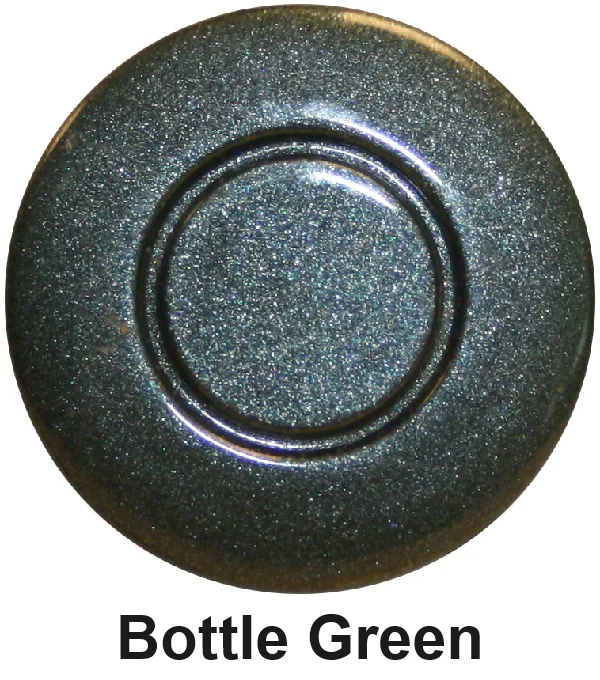

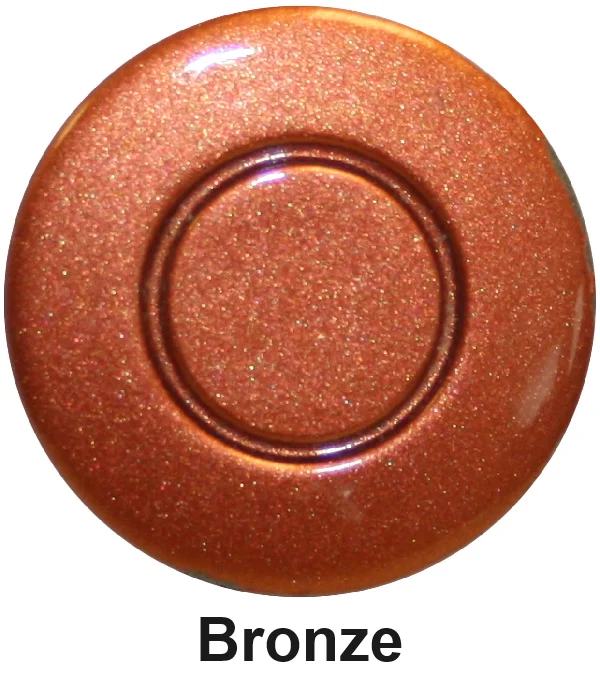

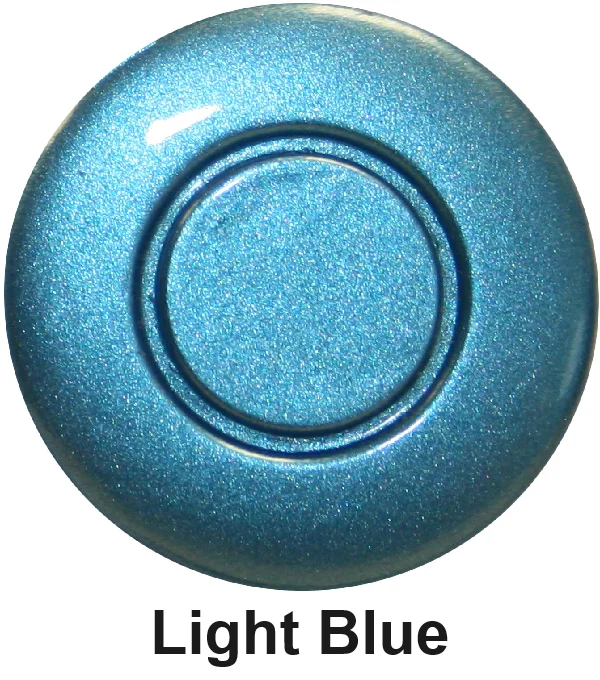

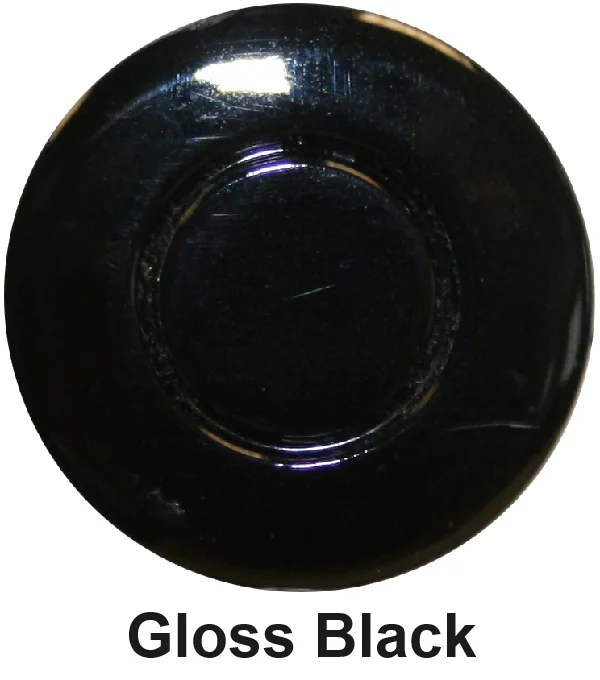

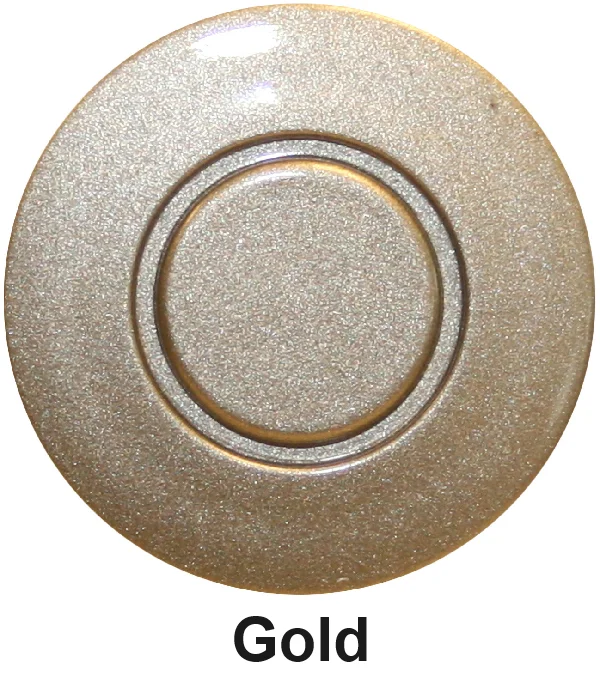

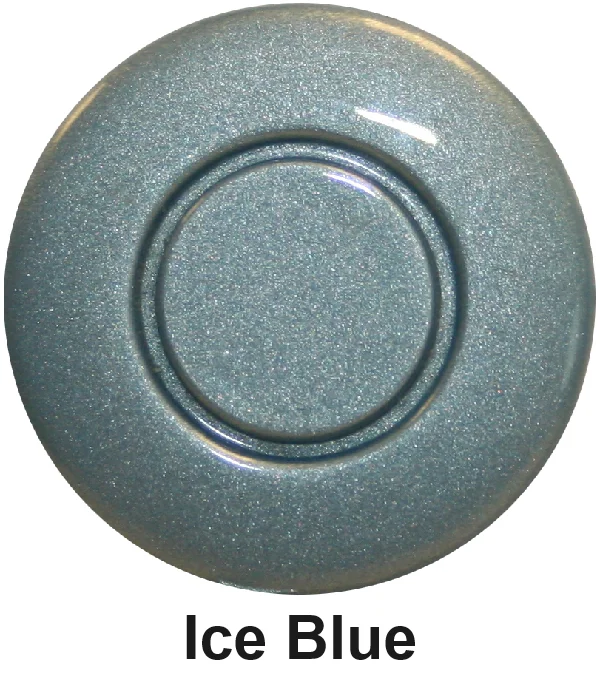

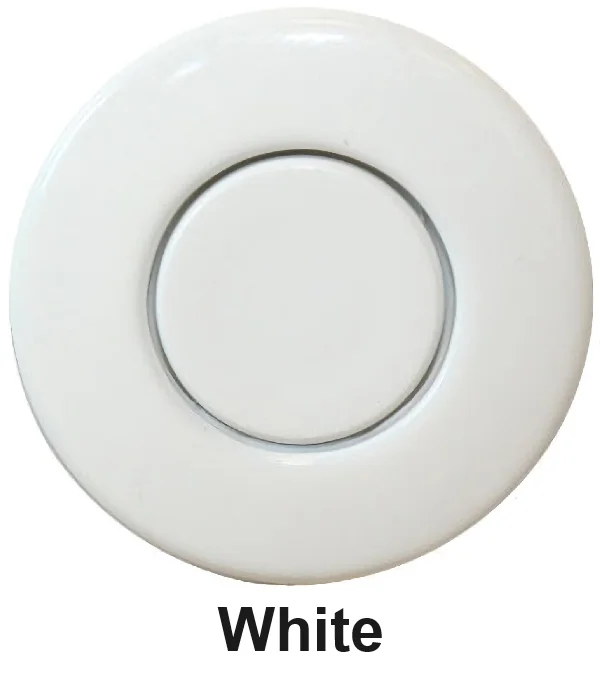

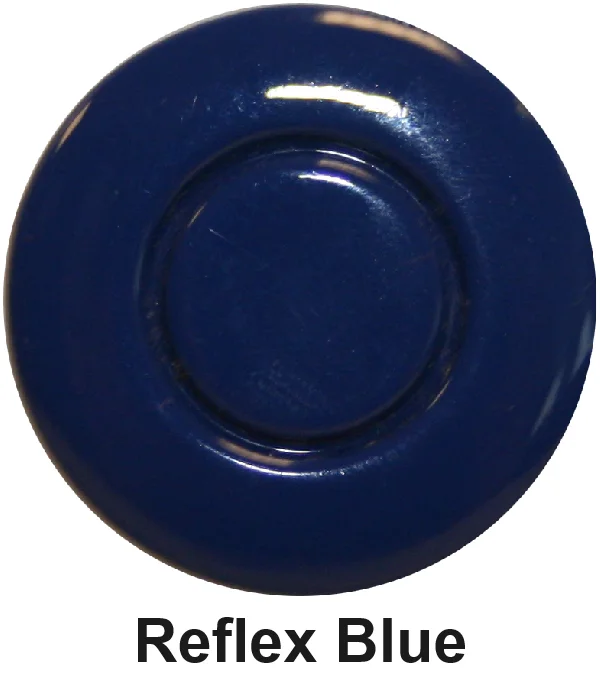

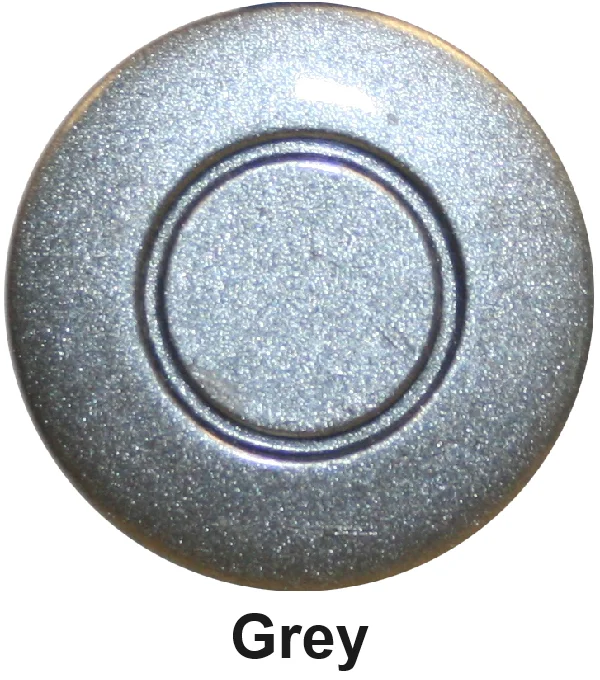

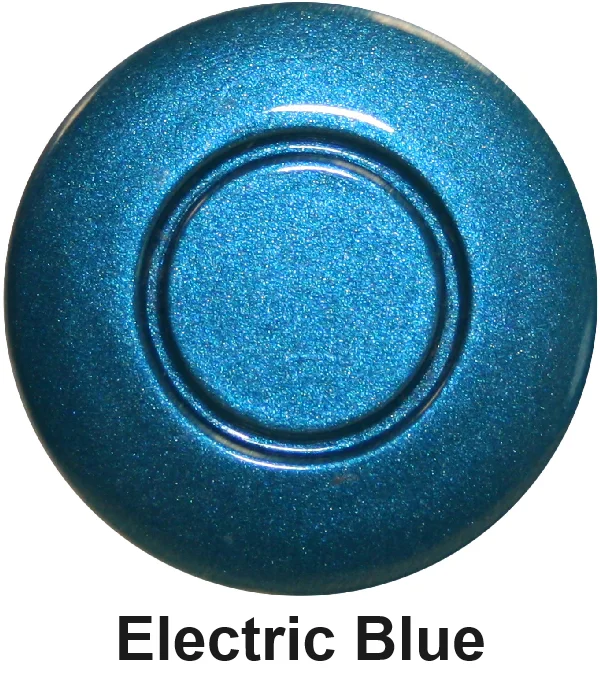

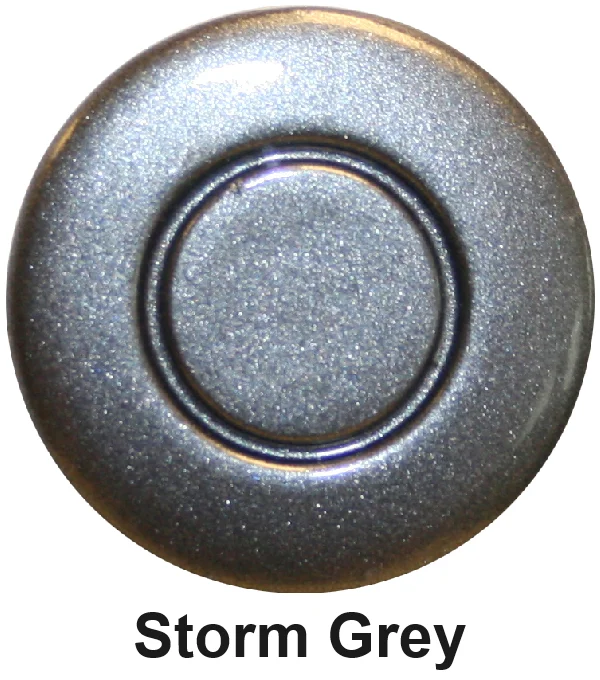

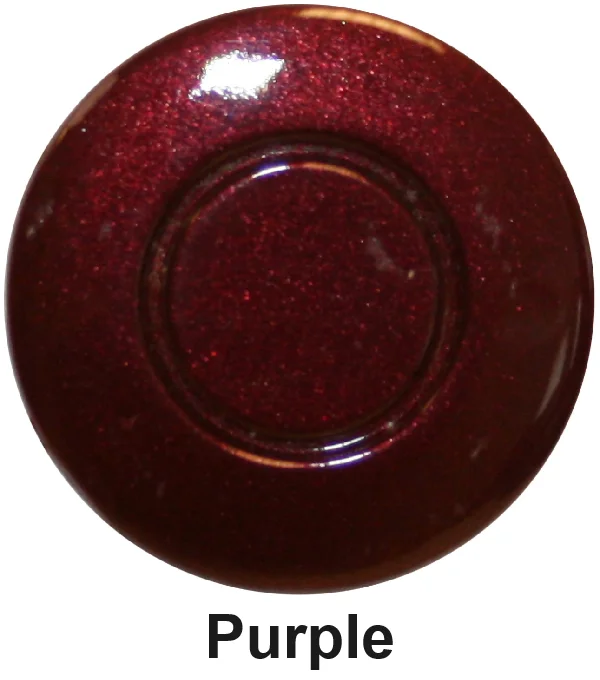

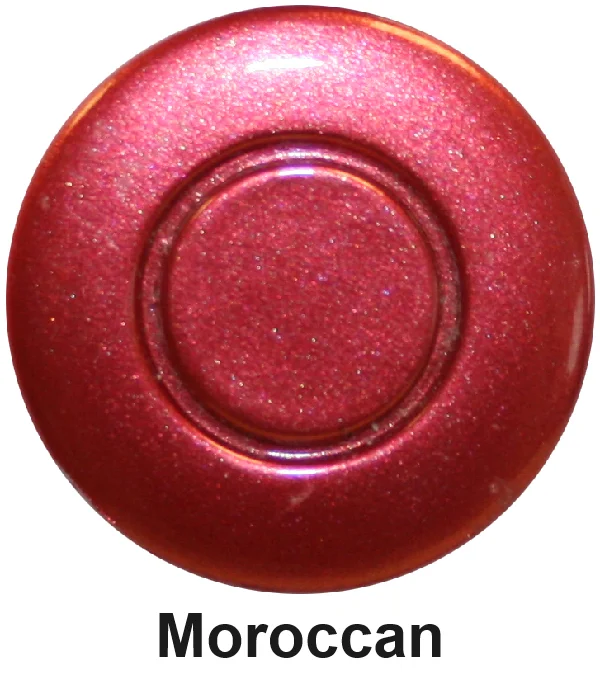

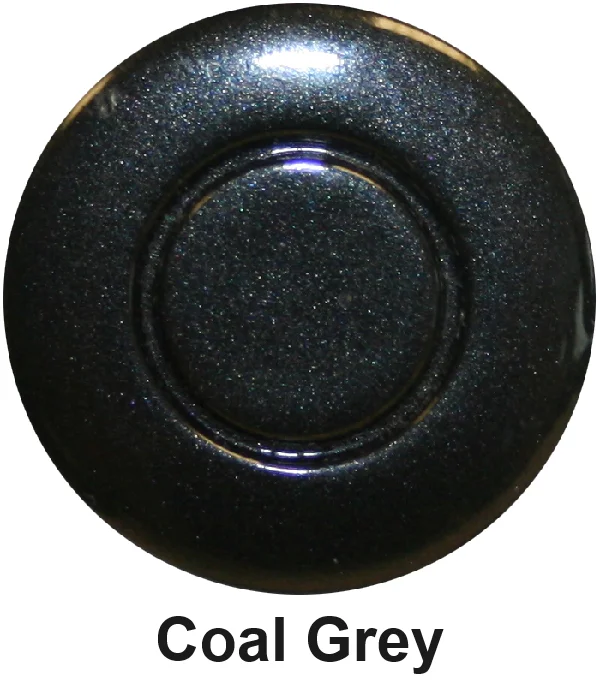

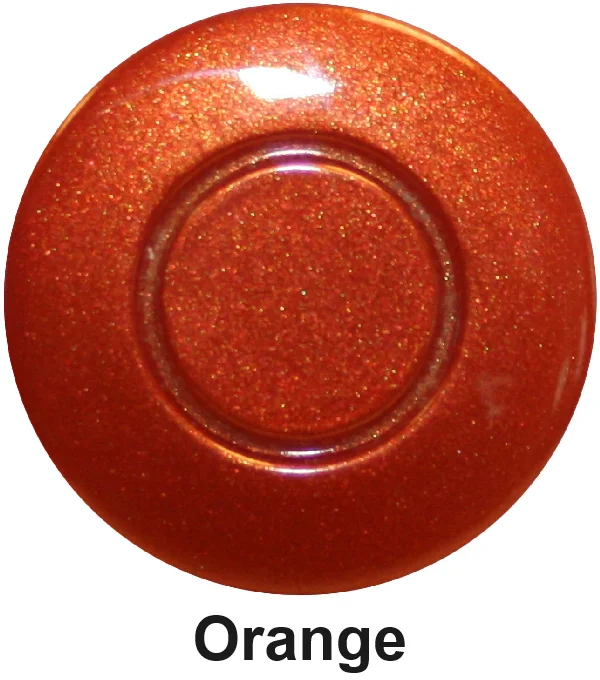

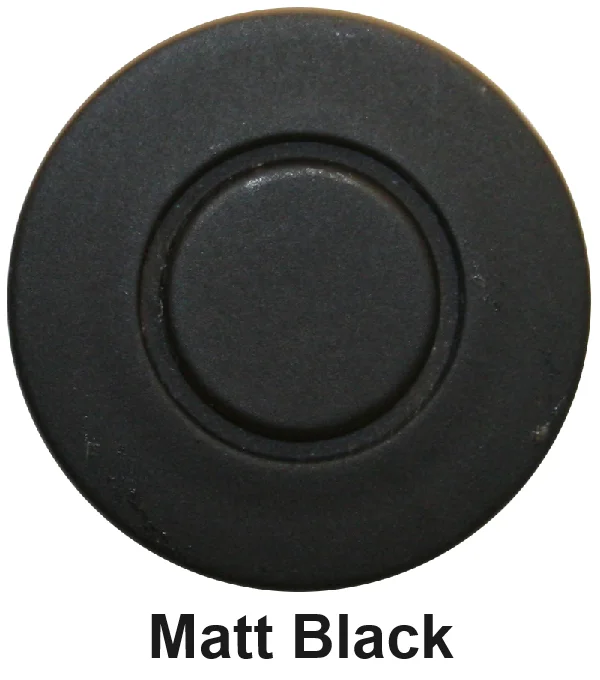

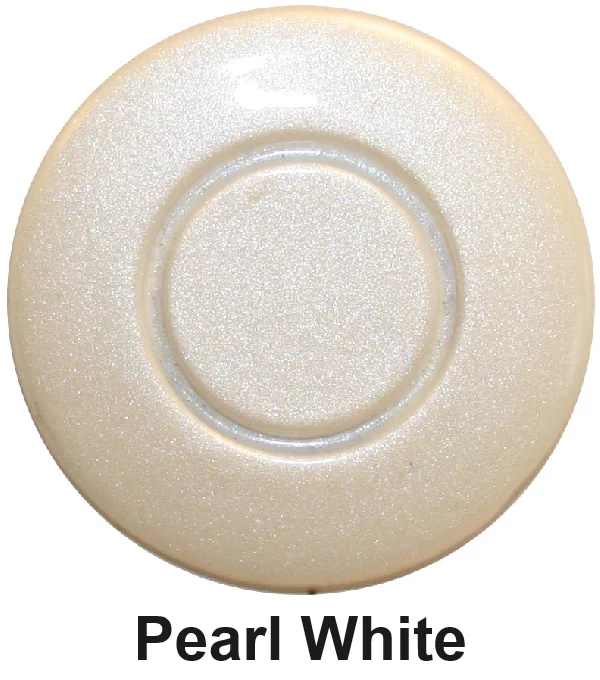

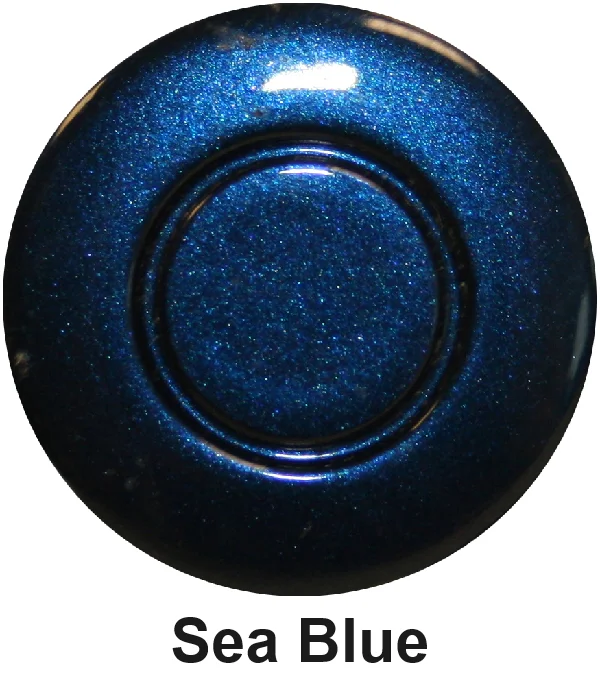

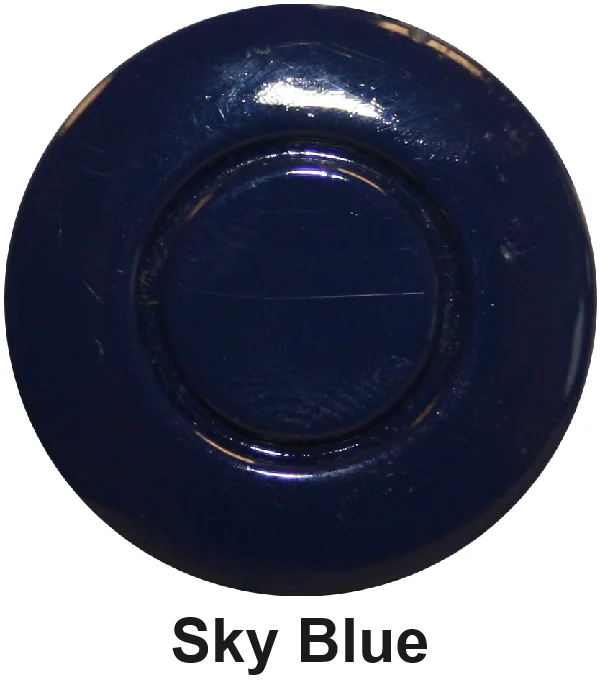

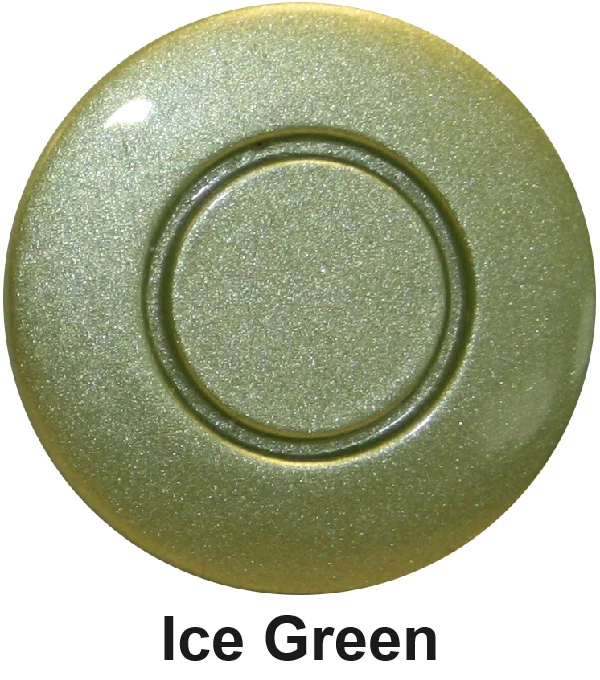

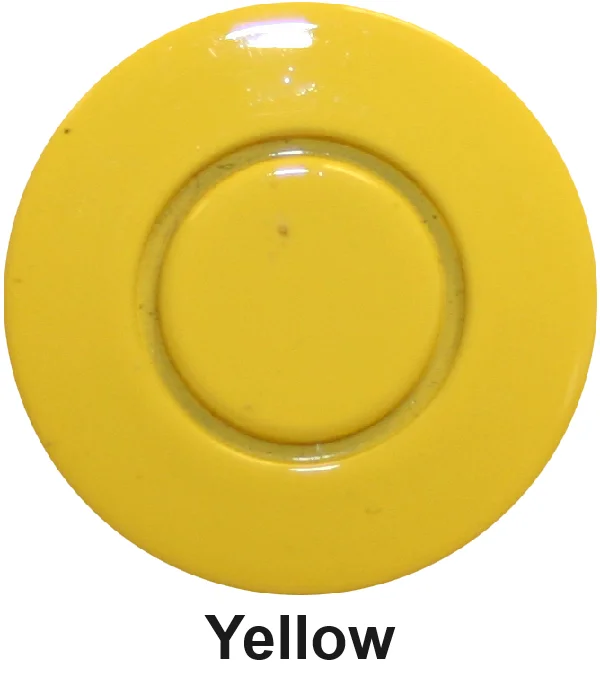

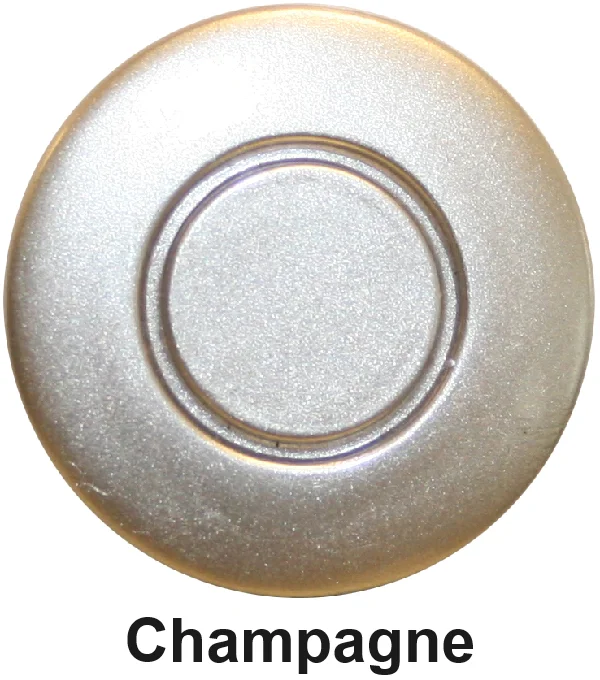

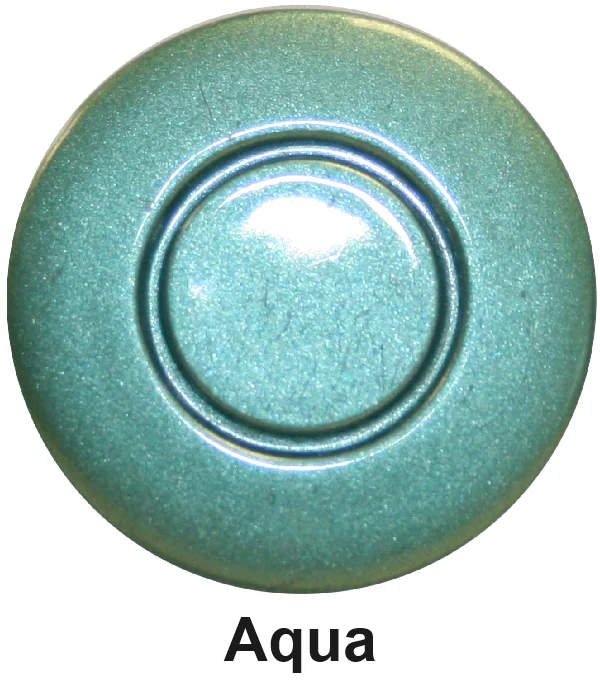

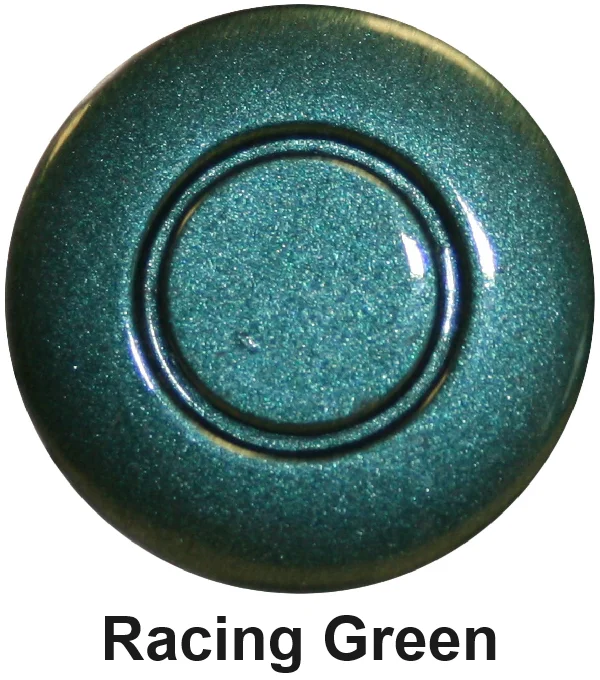

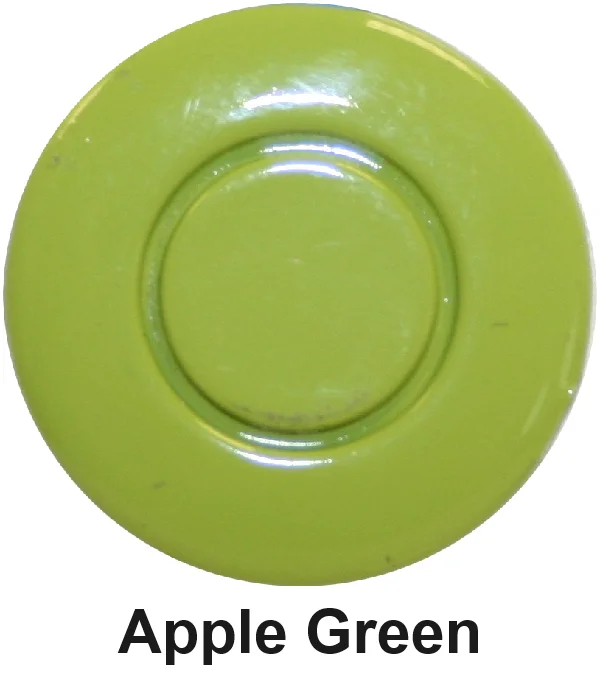

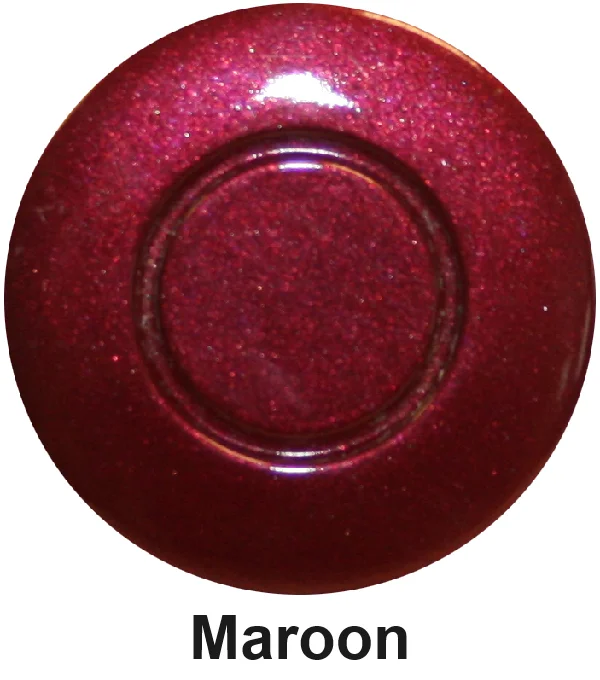

Colour*
Please Contact A Fitter For Me*

£49.99 Inc VAT

£41.66 ex. tax
? Tax based on United Kingdom.

DPS400 Rear Audio Parking Kit - Description

The Dolphin is a 4 recess mounting sensor high quality system that will cover the widest of cars giving a professional finish. Included with the 4 recess sensors is a buzzer which gives audible bleeps with increasing frequency as you get closer to an obstacle.

Kit Contents

  • 4 Recess Bumper Fit Sensors
  • 1 Control Unit
  • Buzzer Unit
  • 1 Cutting Tool
  • 3M Sticky Pad for Brain and Buzzer
  • Instruction Manual

How it works
The system works by radiating ultrasonic beams covering the area behind the vehicle. The beams are reflected by obstructions behind the vehicle, and re-enter the sensors. The reflected beam information is processed to calculate the distance of the obstruction.

As with the other systems the Dolphin unit is activated when reverse gear is engaged. As the vehicle is reversed. When the vehicle is less than 1.5 metres from the obstruction the audible alert will emit intermittent bleeps. As the vehicle gets closer to the obstruction the frequency of the bleeps increases. At 30 centimetres from the obstruction the bleeps become a continuous solid tone.

Stage
Distance
Awareness
Alarm
1
200 - 160cm
Safe Mode
No
2
150 - 100cm
Safe Mode
Bi----Bi----Bi
3
90 - 50cm
Alarm Mode
Bi--Bi--Bi
4
40 - 30cm
Danger Mode
Bi-Bi-B
5
30 - 0cm
Stop
Bi----------

Swap Socket Feature

All the dolphin kits now come with the new watertight swap socket feature based 6 inches from the sensor heads, it makes installation quicker and easier. Also should you ever have a problems with accident damage in the future it facilitates easy replacement without having to remove the bumper again and rewire from scratch.

Optional Wedges
This system comes with optional angled wedges, giving greater flexibility according to the shape of your bumper.  The wedges can be used if your bumper is slightly angled up - or downwards, to ensure the sensor's signal is still sent out parallel with the road's surface.



Technical Specification

  • Rated voltage (range) DC12V
  • Power 3.6W
  • Detecting Angle H>60, V>60 degreese
  • Detection Distance 0.3~2m
  • Sensor Frequency 315MHz/433MHz
  • Working temperature of control box -20 ~+70
Measurements for Standard Size Sensor
Some Useful Measurement Information
(measurements are approximate and not guaranteed)
Component Length x Width x Depth
Size of Buzzer

59mm x 40mm x 17mm

Size of Processor
96mm x 68mm x 26mm
Size of Ultrasonic Recess Sensors
25mm x 22mm
Diameter Size For Drilling
21mm (Drill Bit Supplied)
Length of Sensors Cabling
2m
Length of Cabling for Buzzer
2m

Maintenance
No routine maintenance or adjustment is required. Dirt, frost or snow accumulated on the sensors may cause the system to activate incorrectly. Clean carefully with a soft cloth. Do not use chemicals or spirits. Applying hot water in frozen conditions may damage the sensors. The sensors can be washed carefully with warm soapy water
